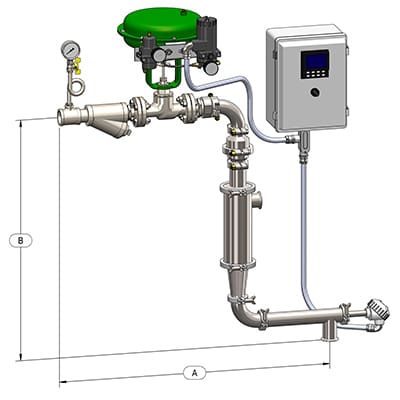

What is a "SC" Sanitary Steam Injection Heater/Cooker?
The Pick Sanitary Steam Injector is the preferred choice for in-line product cooking, CIP heating or nitrogen gas injection.
The Pick SC heats or cooks any water-miscible liquid or slurry instantly on a continuous straight through basis. It can handle slurries containing bite sized particulate such as salsas or stews…with particulate integrity retained!

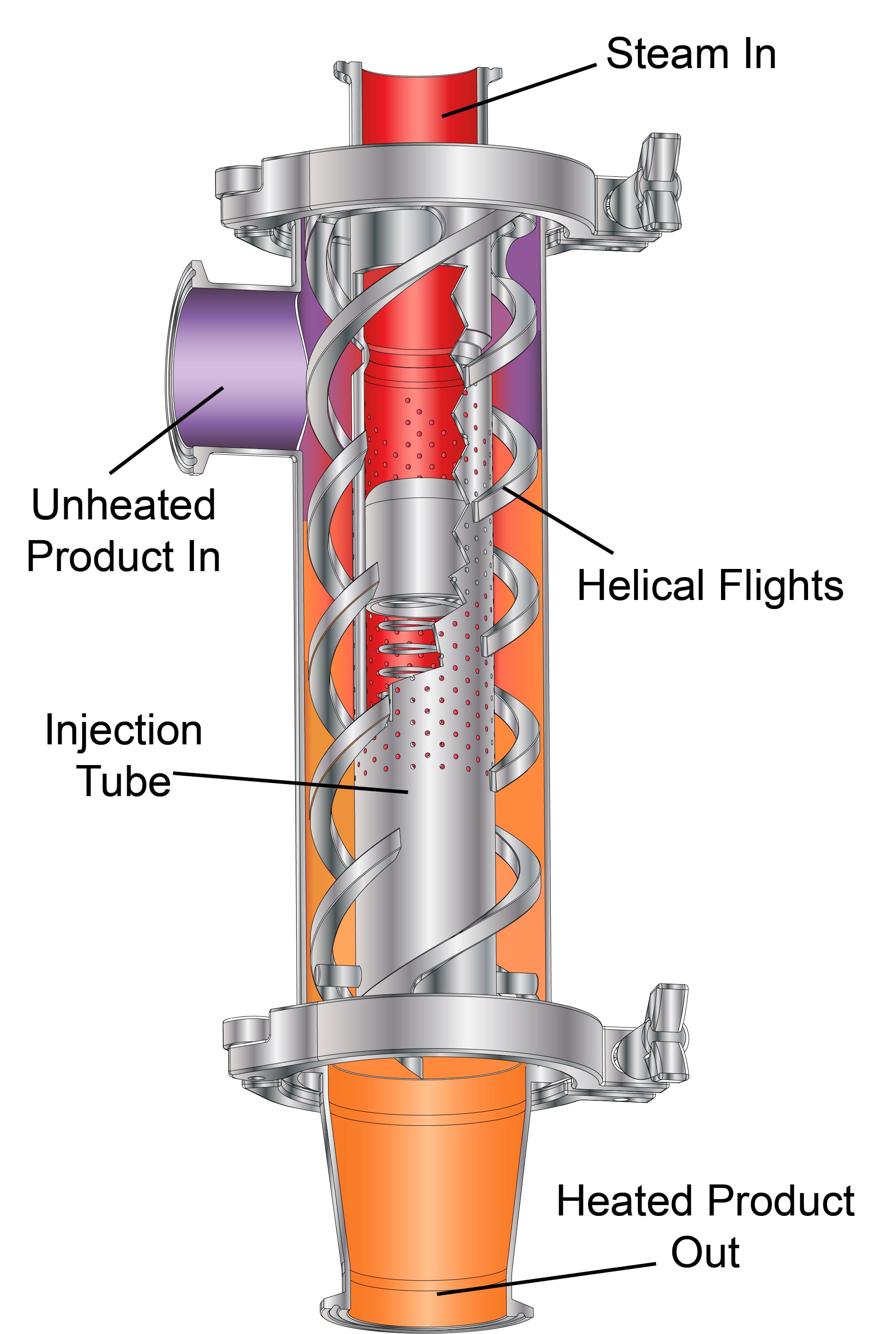

The Pick Sanitary Heater/Jet Cooker achieves set point temperature instantly and provides a thorough cook of products like starches using its unique, low velocity, variable orifice steam injector and helical flights to ensure intimate and gentle blending of steam and product without high shear and product degradation commonly found with sonic velocity venturi systems. Forget the inherent process inefficiencies and maintenance headaches of traditional batch cooking.
The Pick Sanitary Heater meets 3-A sanitary requirements for regulatory compliance with food and dairy applications. Pick Direct Steam Injection allows you to heat in-line, with precise temperature control and 100% energy efficiency.

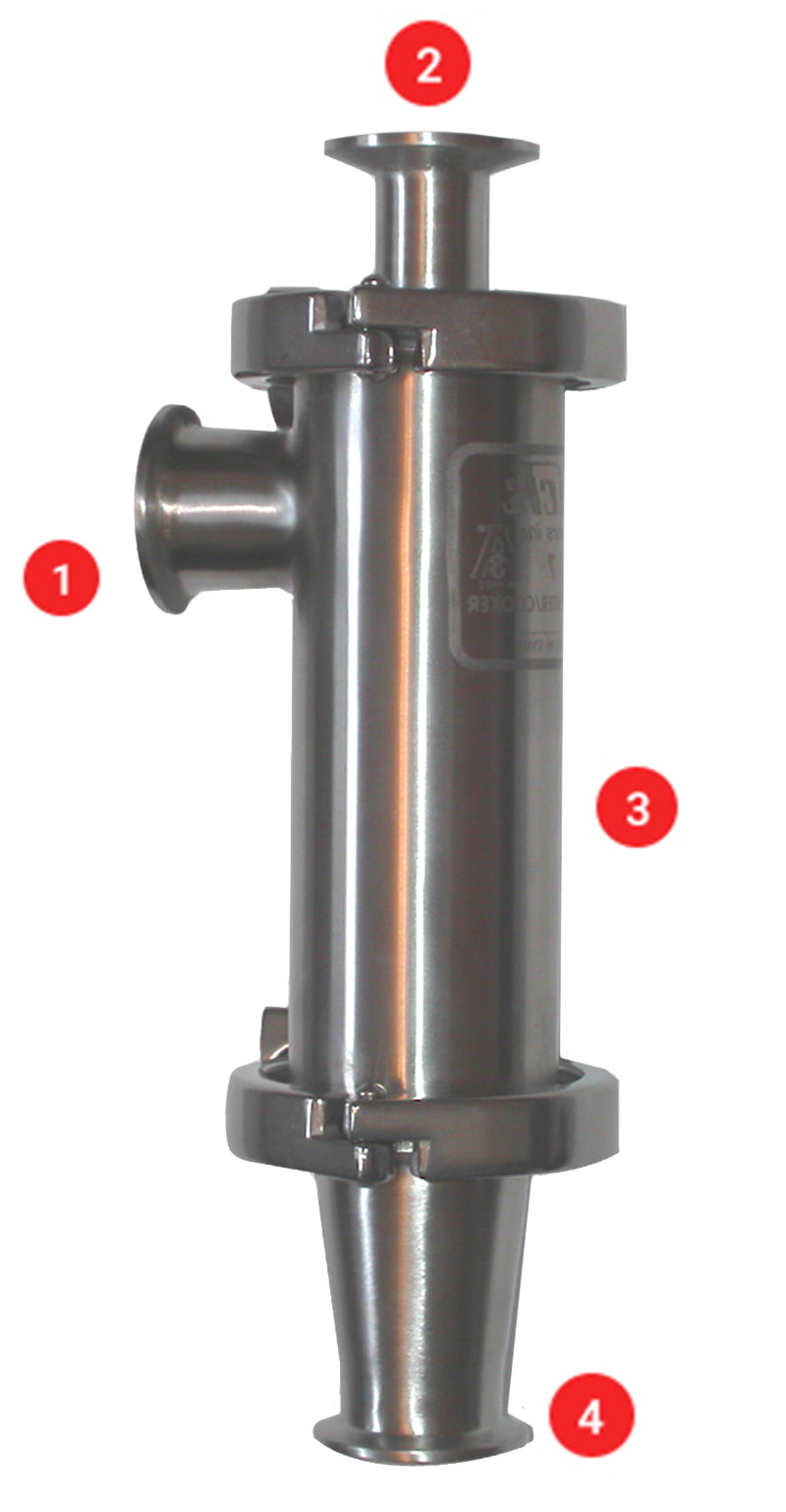

Pick Sanitary Heaters/Jet Cookers carry the 3A symbol. The 3A symbol certifies the heater is in regulatory compliance for any food or dairy application. All product surfaces are 316L Stainless Steel with #4 (32 Ra) sanitary polish. Tri-clamp® connections are standard, and other connections are available upon request. The entire unit disassembles in minutes for routine inspection and cleaning.
