Nitrogen Injector

Pick Gas Injector

The Pick Nitrogen Injector provides thorough mixing and a non-shearing design to ensure product quality and integrity.

The Pick Injector is an excellent choice to disperse nitrogen into products such as mayonnaise, peanut butter, and edible oils.



Typical Applications Include:




  • Nitrogen Injection
  • pH Control
  • Ozone Sparging
  • Oxygen Stripping

Benefits of the Pick Nitrogen Injector:




Simple Design

Product and nitrogen connections are all sanitary clamp type. Main housing also utilizes clamp connections and can be easily disassembled for removal of injector, inspection, and cleaning.

Easily Control Amount of Gas Flow

The Pick Injector is normally supplied with a nitrogen pressure regulator, flow regulator, and related piping and fittings. The flow regulator can be a simple rotameter or a programmable mass flow meter. In the latter case, the rate of nitrogen injection can be automatically proportioned to the mass flow of the product.

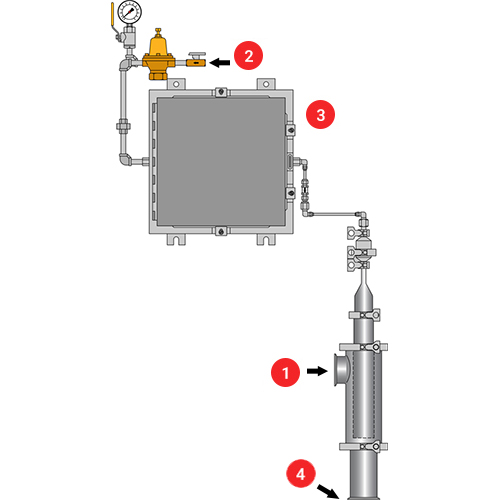

How the Pick Nitrogen Injector Works:






  1. Product (process liquid, peanut butter, mayonnaise) enters mixing chamber
  2. High pressure nitrogen supply
  3. Mass flow meter
  4. Product outlet

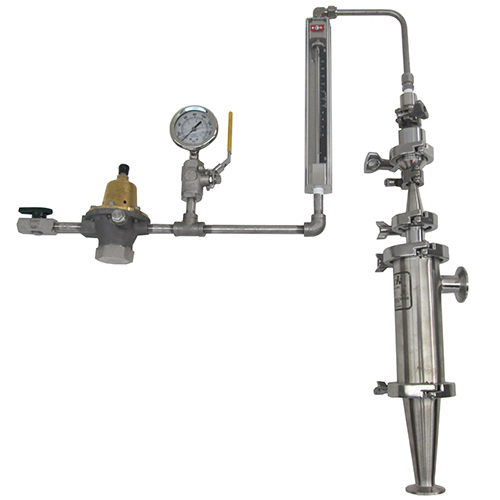

Pick Nitrogen Injector

Nitrogen Injector Technical Specifications




Model No.   SC2 SC7 SC10 SC25 SC50 SC75 SC100
Approximate Dimensions (inches)
A
B
C
D
E
23
21
2.5
3.25
9
24
24
2.5
3.25
12
30
30
2.75
3.75
15
32
38
3.25
6
20
40
40
4.5
5
21.5
58
48
8
8.25
30
58
48
8
8.25
30
