Application:
The R&D division of a major pharmaceutical plant needed a fully automatic system to deactivate cell culture biowaste collected from reactors, tanks, sinks and condensate. This waste is to be “killed” at 140°C for a duration of 3 minutes and then cooled to 60°C prior to dumping to drain. The entire system had to be compact enough to fit in the back corner of the lab.
Process Conditions:
Liquid Flow: 2.8-4 GPM
Temperature Rise: 125°C (225°F)
Discharge Temp: 145°C (293°F)
Steam Pressure: 125 PSIG
Liquid Pressure: 60 PSIG
Steam Flow: 271-387 lb/hr
Solution:

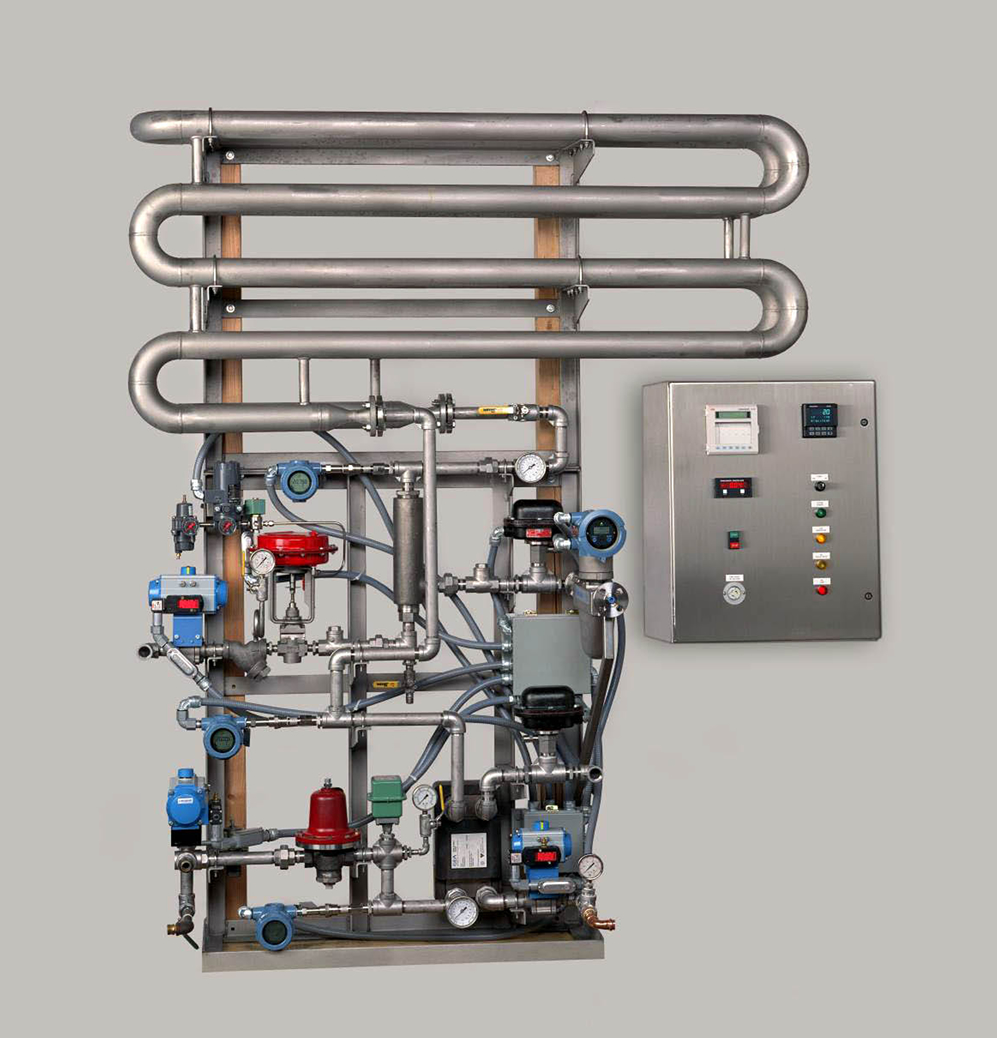

A Pick Model 6X7-3 with all 316 SS wetted parts, 1” liquid piping and 50 Ft. of 2 ½ Hold Tube.
Features and Benefits:
• Accurate Temperature Control
• Fully Automatic Operation
• Compact Design
• Optional Sanitary Construction
Why Choose Direct Steam Injection for Pharmaceutical Processing?
Temperature control is critical in pharmaceutical manufacturing. Pick Heaters' direct steam injection systems deliver rapid, uniform heating while supporting stringent process requirements. The ability to achieve precise temperatures quickly helps improve process consistency, reduce production variability, and maintain product integrity. Our systems are engineered to support reliable operation in highly regulated manufacturing environments.
