Ethanol Plant Process Water Heating Application


Major designer/operator of bioethanol plants uses Pick Direct Steam Injection Water Heaters to quickly bring plants online for production. Large quantities of accurately controlled hot water are required at plant start-up for process water.


Process Conditions:

Water Flow Rate: 500 GPM
Temperature Rise: 60°F
Water Pressure: 45 PSIG
Steam Pressure: 120 PSIG
Steam Flow: 12,900 lbs/hr



Pick Model 6X150-1 Heater

  • Carbon steel construction
  • 4” flanged liquid connections
  • 3” flanged steam connection


Features and Benefits:

• Accurate Temperature Control
• Instantaneous Hot Water
• Compact Size
• Energy Efficient


Contact Us     Download PDF

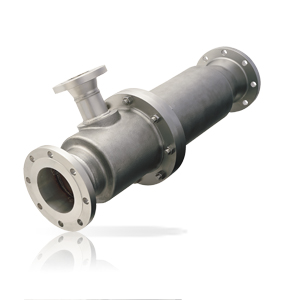

Pick Industrial Steam Injection Heater for Ethanol Plant
