Portable Heating System For Jacketed Kettles

Steam Injection System for Jacketed Kettle Heating

The customer required a small, compact heating system to supply water to various jacketed kettles. A single system was preferred, designed with capability to handle varying requirements.


Ease of operation was a necessity.



Process Conditions:

Water Flow Rate: 1-10 GPM
Inlet Temperature: 70°F
Maximum Outlet Temp: 200°F
Single-Pass Operation
Steam Supply Pressure: 80 PSIG
Water Supply Pressure: 40 PSIG
Steam Flow Required: 56-560 lb/hr

Solution:

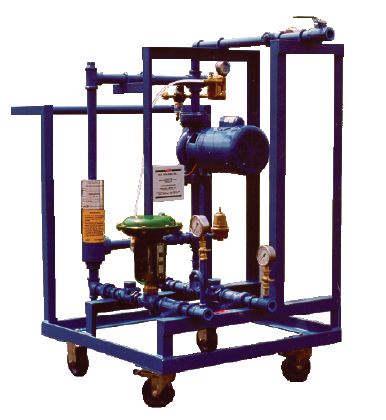

Pick Hot Water Set with 6X7 Variable Flow Heater
Packaged on portable frame.
Approximate size: 41" x 30" x 48"

Features and Benefits:

• Portable, Compact Package
• Flexibility to Handle Wide Range of Process Conditions
• Simple Operation
