A Beginner’s Guide to Direct Steam Injection: Understanding Steam Flow & Pressure Differential
When customers first explore direct steam injection (DSI), one of the most common areas of confusion revolves around steam flow and pressure differential. Getting this right is critical — it directly impacts heater performance and long-term reliability. In this beginner-friendly guide, we’ll walk through three of the most frequent questions:
- How much pressure differential do I need?
- What is the difference between pressure drop across the control valve and pressure drop across my injection tube?
- What happens when differential is too low?
How Much Pressure Differential Do I Need?
At the core of every DSI system is the simple concept of mixing steam directly into a fluid stream. For this to work the general laws of physics cannot be ignored, steam pressure must always be higher than liquid pressure and flow will always move from the high region to the low.
That pressure differential allows the mixing of the system to ensure steam enters the liquid at the right velocity, condenses quickly, and transfers its energy immediately. Without it, the system struggles: steam will not flow into the fluid leading to poor heat transfer and temperature instability.
Think of it as the push that drives steam into the liquid.
Any steam injection device will require higher pressure steam to flow to lower pressure fluids. The Pick Heater design has a major difference in design. The Pick device uses a principle of moderate velocity mixing of steam and liquids at the injection tube. This is a distinct difference from many devices that rely on sonic velocity mixing.
Do not ignore the sonic velocity, it means exactly what it implies. Motivating the steam to extremely high velocities creates loud noise.
Control Valve Pressure Drop and Injection Tube Drop: What’s the Difference?
A common misconception we encounter is confusing control valve pressure drop with injection tube pressure drop. While both involve steam moving from a higher pressure to a lower pressure, they play different roles:
Control Valve Pressure Drop - This is the drop across the steam valve as steam flows through the valve. It’s essential for regulating the flow of steam into the heater.
Injection Tube Pressure Drop - This occurs inside the heater itself, where steam enters the liquid stream and condenses. It’s what makes the actual heating possible. While this can vary, in most applications it is 10psi at the rated flow of the injection tube.
Why does this distinction matter? The sizing of the steam valve is critical and will involve matching a valve Cv (or two valve Cvs in the case of a dual valve arrangement) to the steam flow conditions required for the heating. These valves will deliver the steam at the correct pressure to the injection tube for the final pressure drop across the orifices of the tube. The injection tube responds to the steam pressure that is being controlled by the valve.
What Happens When Differential is Too Low?
When there isn’t enough pressure difference between the steam and the liquid, two common issues can occur:

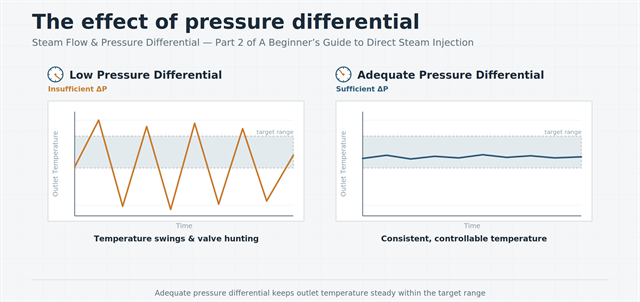

Case 1: Steam pressure is only slightly higher than the liquid pressure, but not high enough for good steam flow into the liquid. This will impact the liquid outlet temperature.
Case 2: The liquid pressure is actually higher than the steam pressure.
Case 1 explained: If the steam pressure is only slightly higher than the liquid pressure, the control valve will open fully to try and deliver more steam. Steam will still flow into the injector, but at a fraction of what it is designed for. Because of this, enough steam can’t flow to get the job done.
This often leads to:
- Noisy operation - Chattering, hammering, or vibration due to poor steam injection.
- Temperature swings - Steam pressure fluctuation can cause variation in flows across a valve or orifices causing inconsistent outlet temperatures.
Case 2 explained: If the liquid pressure is higher than the steam pressure, the flow reverses. Liquid pushes back into the steam line until it hits a check valve or backflow prevention device. In this situation, no heat transfer occurs at all.
The good news is both issues are preventable. Solutions typically involve:
- Adjusting the control valve to match actual operating conditions
- Increasing available steam pressure
or
- Reducing liquid pressure
When the proper pressure differential is maintained, direct steam injection systems run smoothly, efficiently, and consistently.
Direct steam injection is one of the most efficient ways to heat process liquids, but its success depends on getting the basics right. Pressure differential isn’t just a technical detail - it’s the foundation for stable operation. By understanding how valve pressure drop and injection tube drop differ, and by recognizing the warning signs of low differential, you can prevent instability and get the most from your system.
At Pick Heaters, we’ve helped thousands of customers optimize their steam injection systems when process conditions change. If you’re seeing valve chatter, noisy operation, or unstable temperature control, our team can help you pinpoint whether pressure differential is the culprit and provide proven solutions.
